Features

Specifications

Name: RO Water Treatment

Processing Type: Reverse Osmosis System

Filter Type: Sediment, Carbon, Reverse Osmosis, Post Carbon

Filtration System: Reverse Osmosis

Voltage: 220V, 380V, 110V

Capacity: 500lph,750lph,1000lph

Highlight:

industrial reverse osmosis water treatment system

RO waste water treatment plant

drinking water filter system with warranty

Basic Infomation

Place of Origin: China

Brand Name: READYCOME

Certification: CE,Rosh

Document: Product Brochure - Sichuan ...me.pdf

Payment & Shipping Terms

Payment Terms: L/C,D/A,T/T,D/P,Western Union

Gallery

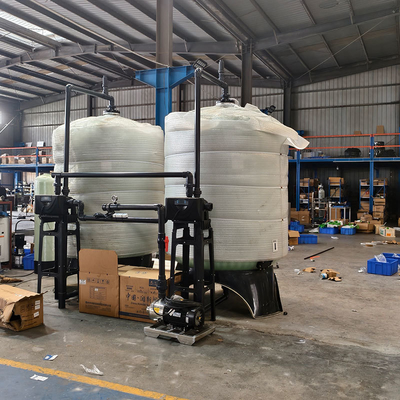

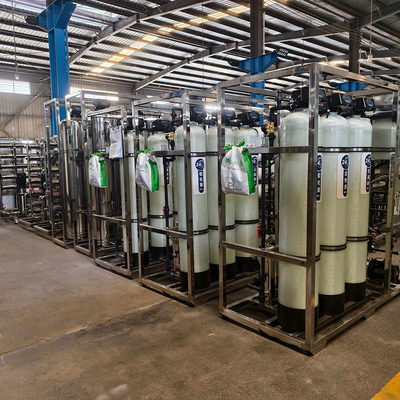

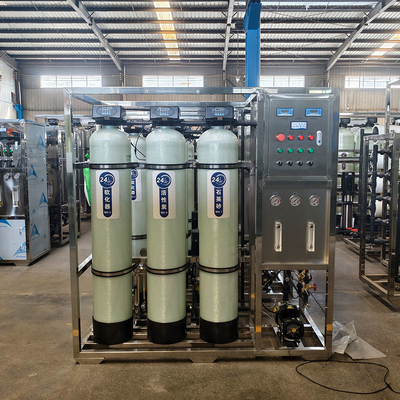

Industrial Reverse Osmosis Waste Water Treatment Plant Drinking Water Filter System

Product Description

Industrial Reverse Osmosis Waste Water Treatment Plant Drinking Water Filter System

Reverse Osmosis Water Treatment: The Science Behind Pure Water

1. The Physics of Nanoscale Filtration

When pure water and saltwater are separated by a semi-permeable membrane, water naturally flows toward the saltwater side (osmosis). Reverse osmosis (RO) reverses this flow by applying pressure greater than osmotic pressure to the saltwater side, forcing pure water molecules through the membrane while blocking contaminants. The heart of RO systems—the RO membrane—has 0.0001-micron pores (1/1,000,000 of a human hair), filtering ions and particles larger than 0.3–0.6 nanometers.

2. Dual Applications: Medical & Household

Medical Ultra-Pure Water

For dialysis and lab use, RO alone is insufficient. Two-stage RO + EDI (Electrodeionization) achieves 18.2 MΩ·cm resistivity. EDI combines ion exchange and electric fields to remove ions without chemicals, enabling continuous ultra-pure water production.

Product name	RO Water Treatment System
Membranes	4040 industrial RO elements
Feed Water	Municipal supply (TDS≤1500ppm)
Dimensions	550350980mm
Four-stage Filtration	20 "PP+20" UDF+20 "PP+4040RO Membrane
