Product Summary
500L/H 1000L/H Fiberglass Stainless Steel Water Treatment Plant Ro System RO Water Treatment Reverse Osmosis System Reverse osmosis (RO) is a kind of water purification technology that uses a semipermeable membraneunder pressure applied to remove ions, molecules, and larger particles , bactaria and ...
Product Details
Highlight:
fiberglass RO water treatment system
,stainless steel RO system 1000L/H
,500L/H water treatment plant with warranty
Name:
RO Water Treatment
Processing Type:
Reverse Osmosis System
Certifications:
Rohs,CE
Additional Features:
Automatic Shut-off, Leak Protection, Quick Connect Fittings
Filtration System:
Reverse Osmosis
Capacity:
2000L/H,50GPD,1500L,500LPH,10L-50
Condition:
New
Product Description

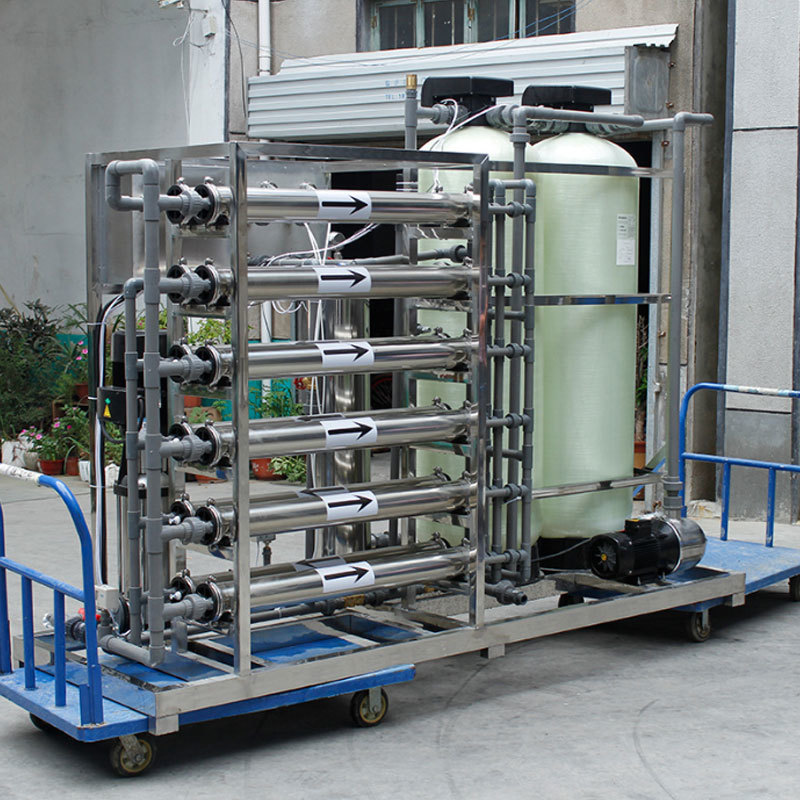

500L/H 1000L/H Fiberglass Stainless Steel Water Treatment Plant Ro System
RO Water Treatment Reverse Osmosis System
Reverse osmosis (RO) is a kind of water purification technology that uses a semipermeable membraneunder pressure applied to remove ions, molecules, and larger particles , bactaria and so on from water, and is used in both industrial processes and the production of potable water.
Typical Reverse Osmosis Processing:
Raw water pump → Silica sand filter → Activated carbon filter→ Sodium ion exchanger → Security filter → High-pressure pump → Reverse osmosis system →Uv sterilizer→Ozone sterilizer →Finished Water tank
1. Raw water pump: provide the pressure to silica sandfilter/active carbon filter
2. Silica Sand filter: get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Activated Carbon filter: Remove the color, free chloride, organic matter, harmful matter and so on
4, WATER Softener: Get rid of calcium and magnesium ions in original / source water, reduce water hardness.
5. Security filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).
7. RO system-- main part of pure water treatment plant. The desaltation rate upto 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic.
8.UV sterilizer -- kill some bacteria that may also pass through the reverse osmosis
9.Ozone sterilizer -- Use ozone Kill bacteria not killed by UV 10.Finished water tank -- For filter water storage
