Diesel Engine Fire Pump System 2000GPM with Jockey Pump

1 set
MOQ
USD $6619/sets 1-9 sets
Price
Diesel Engine Fire Pump System 2000GPM with Jockey Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Diesel Engine Fire Pump System
Voltage: 220V/380V
Flow Rate: 2000GPM/Custom
Engine Type: Diesel Engine
Fuel: Diesel,electric,Multistage Jockey Pump,Diesel+Electric,Diesel Engine Fire Pump
Application: Fire,Submersible,irrigation,Maritime,minging Drawing
Highlight:

2000GPM diesel fire pump system

,

diesel fire pump with jockey pump

,

industrial diesel engine fire pump
Basic Infomation
Place of Origin: China
Brand Name: RDC
Certification: CCC
Document: RDC- Fire Fighting Pump Ser...es.pdf
Payment & Shipping Terms
Payment Terms: D/A,D/P,T/T
Product Description
Fire Pump Set with Diesel Engine and Multistage Jockey Pump
Product Specifications
Attribute Value
Product name Diesel Engine Fire Pump System
Voltage 220V/380V
Flow Rate 2000GPM/Custom
Engine Type Diesel Engine
Fuel Diesel, Electric, Multistage jockey pump, Diesel+Electric
Application Fire, Submersible, Irrigation, Maritime, Mining
Product Description

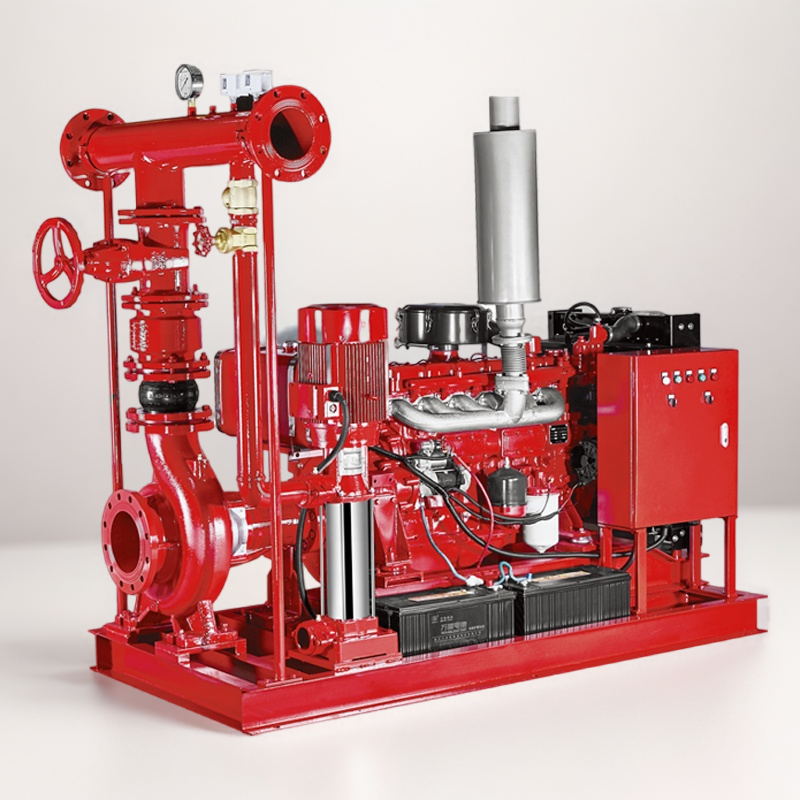

The EDJ Fire Pump Set consists of a main electric pump (driven by electric motor), standby diesel pump (driven by diesel engine), and a multistage jockey pump. Pumps are assembled with discharge pipe and suction pipe as well as Control Panel. This fire pump system can be customized for various applications including high-rise buildings, warehouses, facilities, hospitals, supermarkets, shopping malls, villas, and apartments.
The main pump can be configured as an end suction pump, multistage pump, split case pump, or vertical turbine pump with standard materials including stainless steel, cast iron, and bronze. Each package is mounted on a steel fabricated base with motor, engine and pump coupled and wired to the controller.
The system includes automatic air relief valve, gate valves, check valves, flexible joint, pressure switches, and pressure gauge mounted on their respective pipes. Additional piping, pressure tank, valves and sensing lines are available upon request. Fire Pump Series Controllers are pre-wired, tested before delivery and ready for immediate use.
Technical Specifications
Max. Head
50-400m
Max. Capacity
400 L/min
Flow Capacity Range
50-5000gpm
Working Pressure
High Pressure Pump
Voltage
220V/380V/400V/415V/440V
Speed
1450rpm/1750rpm/2900rpm/3500rpm
Application
Building Fire Fighting, etc
HS Code
8413709990
Product Gallery

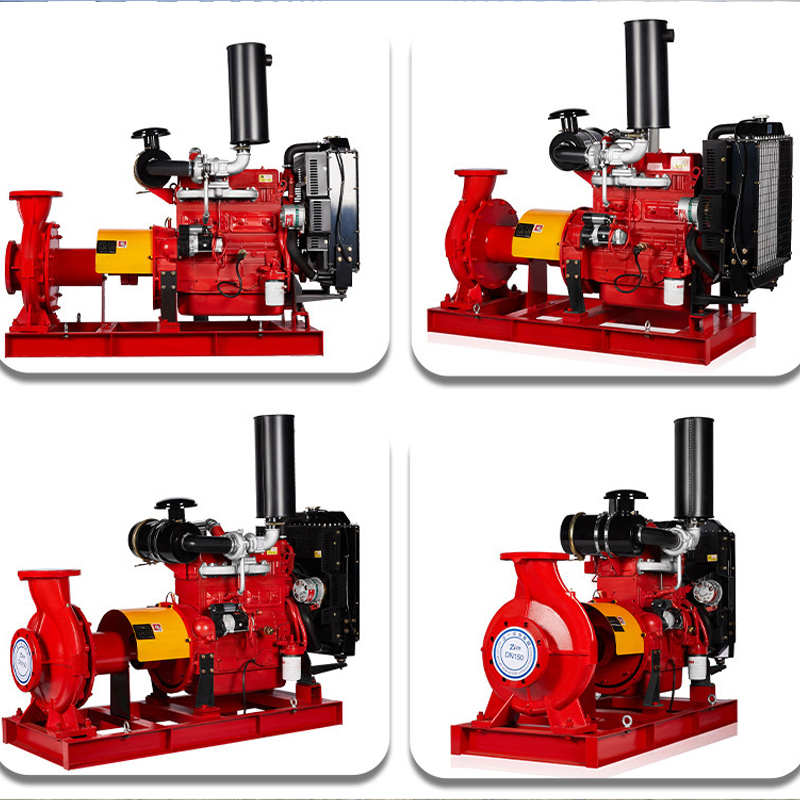

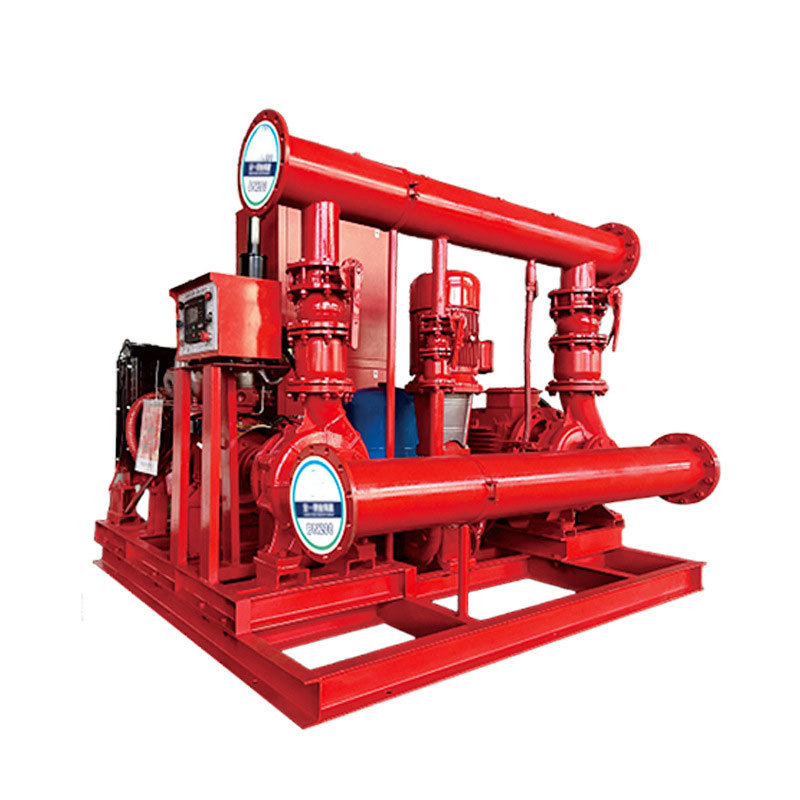

Diesel Engine Fire Pump System 2000GPM with Jockey Pump 0 Diesel Engine Fire Pump System 2000GPM with Jockey Pump 1 Diesel Engine Fire Pump System 2000GPM with Jockey Pump 2 Diesel Engine Fire Pump System 2000GPM with Jockey Pump 3 Diesel Engine Fire Pump System 2000GPM with Jockey Pump 4 Diesel Engine Fire Pump System 2000GPM with Jockey Pump 5
